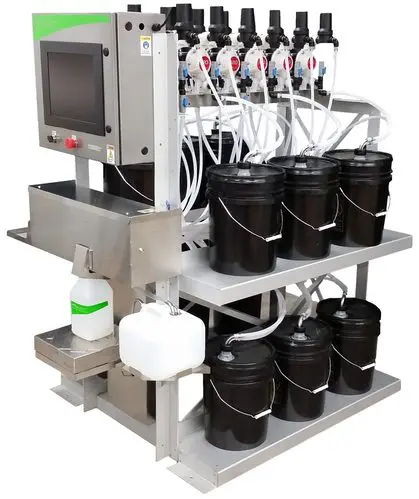

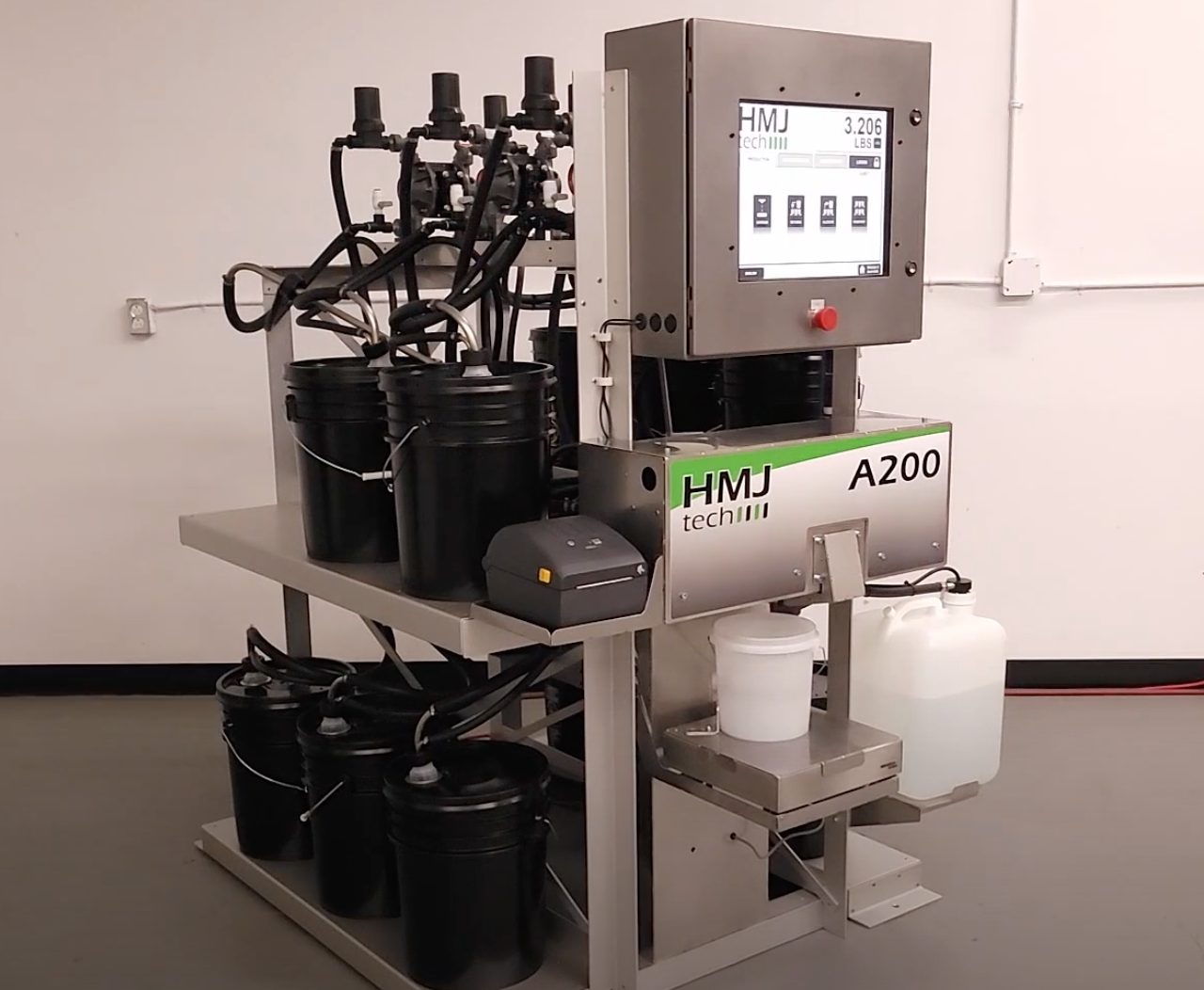

HMJ tech’s A200 is the most affordable, industrial-grade dispenser available, but don’t be fooled. Despite its compact size and affordable price tag, the A200 has a ton of big-machine features including fully-automated cleaning and single point dispense.
It arrives fully assembled and configured on a single crate. Simply connect the utilities, add your source containers, load your recipe book and start dispensing batches.
The on-board inventory system conveniently arranges 12 pails, plus it can accommodate two drums or totes behind the frame for high-use ingredients (other configurations possible).
The A200 uses a 2-range+pulse valve for a perfect combination of speed and precision with clean, laminar flow and predictable dispenses every time!
The touch screen interface is easy to navigate and comes complete with the industry’s best features for easy dispensing, recipe book management, inventory management and reporting.
The A200 is ideal for small and niche clients looking to exploit the advantages of in-house batching. If you are still buying pre-mixed inks, coatings or chemicals, it is time to explore how the A200 can improve your bottom line.
| Number Of Stations | Fully automated dispensing for up to 14 valve stations. |
| Compatible Chemistry | Water-based, Uv-curable, Any Non-flammable |
| Target Containers | Jugs, Pails |
| Batch Performance | 90 Seconds (1 Usg / 4l, 4 Ingredients, 1% Precision) |
| Weight Station | Industrial 30kg x 0.2g [65 lbs x 0.0005 lbs] |
| Valve Positioning | Moving head, single-point dispense |
| Valve Cleaning | Patented fully-automated cleaning after each dispense |
| Controls | Industrial-grade controls, pneumatics, scale, touchscreen |
HMJ tech’s dispensers are designed and built to be rugged, reliable performers. Our industrial-grade machines use only industrial-grade hardware and controls, including a fanless solid-state computer, manifold-style pneumatics, industrial touch-screen monitors and industrial grade weight platforms.
Join our growing list of end-users who have embraced the long-term benefits of systems that are designed to hold up in the most demanding environments.

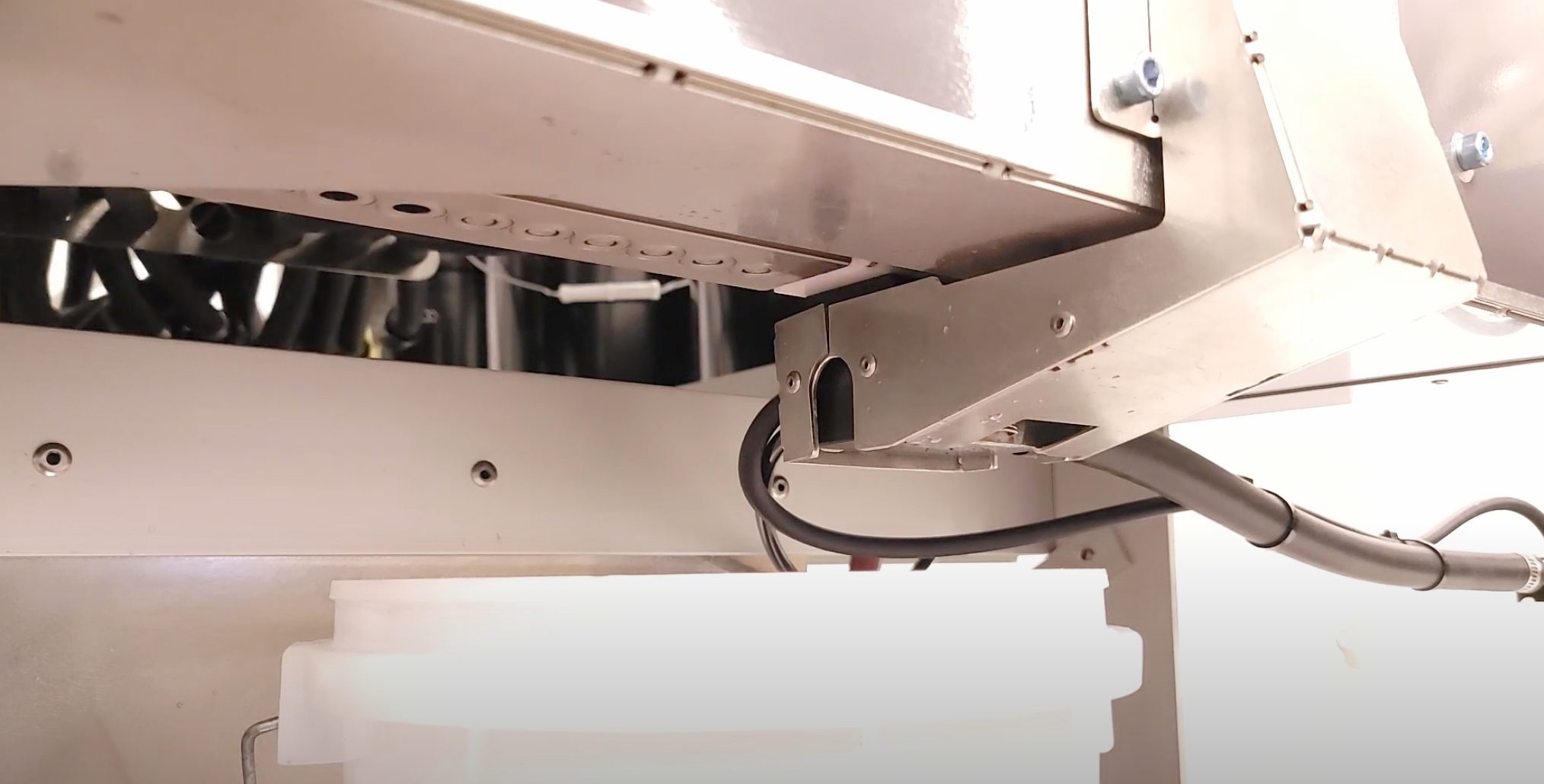

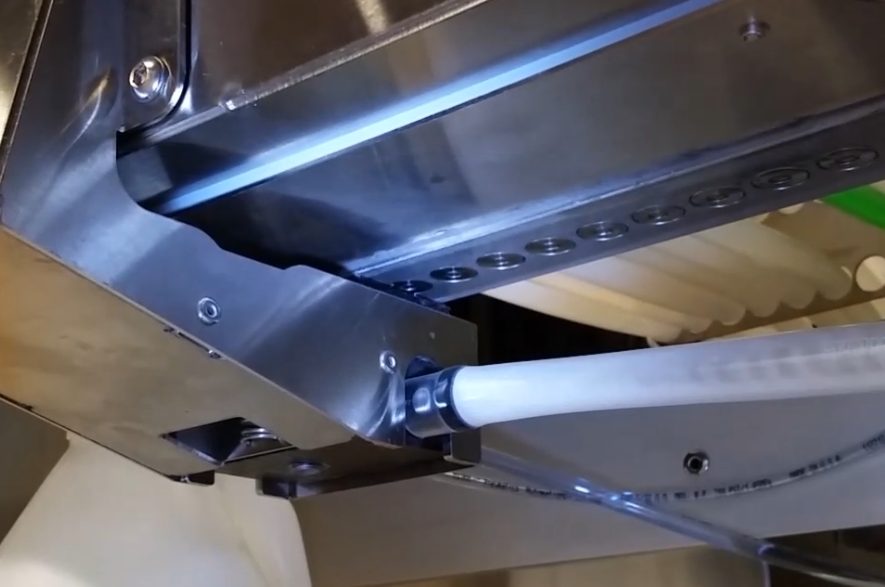

At the heart of every HMJ tech automated dispenser is our proprietary automated valve cleaner. Compressed air is used to create a vacuum in the cleaner which induces an aggressive flow of cleaner fluid and then flushes it all away through the cyclonic separator, allowing the cleaner fluid to be reused.
This dripless system keeps valves in top condition for reliable dispensing every time. No more soaker pans, scrapers or manual cleaning. Keep the cleaner fluid maintained and the system will do the rest for you.

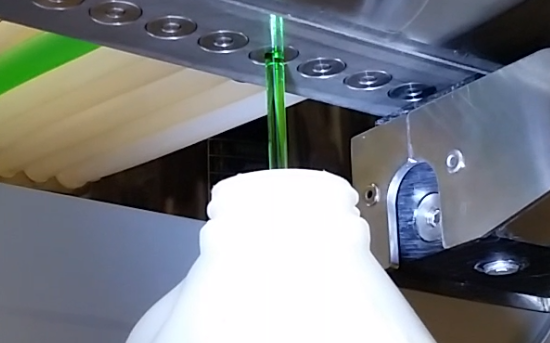

Every HMJ tech automated dispenser has single-point dispensing. It aligns each and every valve directly over the opening of your container, no matter how small. Even small cups and narrow-neck jugs are an easy target for our precision positioning and predictable flow.
Whether you need a few ounces or a full drum, single-point dispensing will put your product where it belongs, in the container.

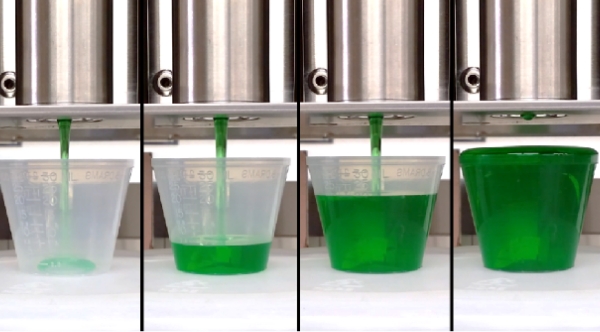

HMJ tech’s 200 and 300 series valves have been purpose built to deliver the absolute best performance for dispensing. The unique internal design ensures laminar flow and clean transitions for perfect dispenses without drips or splashes. The all-stainless steel internals are chemically passivated for maximum performance with a wide range of fluids.
The real-time algorithm of the solid-state controller allows for instantaneous transitions between flow ranges for fast, precise dispenses every time.

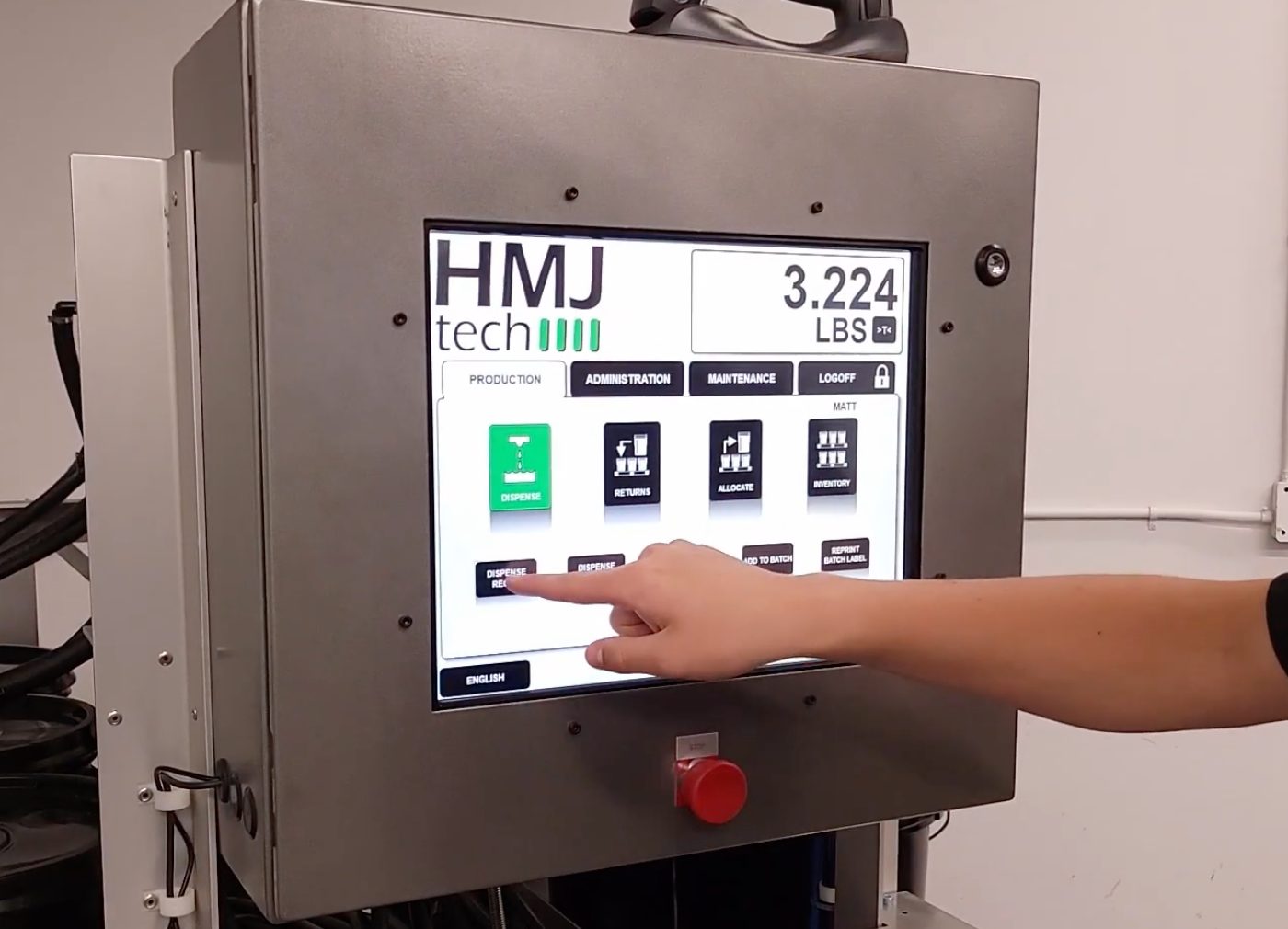

Our touch-screen control system gives the user intuitive access to a wide range of features and options. Need a quick dispense? With just a few clicks, you can select standard recipes and get them to press.
Our comprehensive software is the best in the business with easy-to-use features including multi-stage batches, on-machine inventory, lot tracking, returns and work-off, user accounts, automatic reports and MUCH MORE.
All of HMJ tech’s dispensers are built using rugged modules with obvious connection points and easy-to-access fasteners that use common tools. Standardized designs allow for simple trouble-shooting and quick delivery of spare parts.
More often than not, a dispenser is a mission-critical component that cannot sit idle. HMJ tech’s dispensers are built to deliver maximum up-time for maximum return on investment.
